Free sample questions. Corrected, explained... 022 - Instrumentation > Sensors and Instruments Any vibration displayed on an engine vibration monitoring system for a turbojet:
Indicates rotor imbalance. Is directly proportional to engine speed. Is presented without any amplification or filtering. Varies inversely as the square of the engine speed. Bertrand : The engine vibration monitoring on a turbojet engine indicates any vibration resulting from an imbalance on the rotation parts of the engine. Engine vibration may occur due to fan blade/spinner icing resulting in a rotor imbalance.

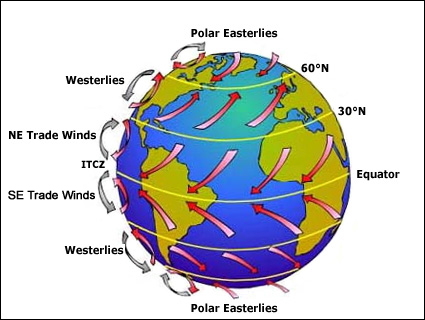

050 - Meteorology > Air Masses and Fronts Considering the North Atlantic between 30°N and 65°N, the mean position of the polar front during winter extends from:
Newfoundland to Iceland. NE Canada to Portugal. Iceland to Norway. Florida to SW England. Bertrand :
From summer to winter the polar front over the North Atlantic moves towards the south:
Between 30°N and 65°N in Winter :
- Low pressure systems centered over Iceland / Greenland.
- High pressure systems centered over Azores, Siberia.
- The polar front extends from Florida to SW England.
Between 30°N and 65°N in Summer :
- Low pressure systems centered over NE Canada.
- High pressure systems centered over Azores, SE USA, SW Europe.
- The polar front extends from Newfoundland to N Scotland.
081 - Principles of Flight > Subsonic Aerodynamics An aerofoil is cambered when:
The maximum thickness is large compared with the length of the chord. The chord line is curved. The line, which connects the centres of all inscribed circles, is curved. The upper surface of the aerofoil is curved. Bertrand :
The green line is the chord (the direct line from leading edge to trailing edge).
In red, the line which connects the centres of all inscribed circles. This line is curved when the aerofoil is cambered.
082 - Principles of Flight H > Subsonic Aerodynamics An anti-torque system without tail rotor is called:
COAXIAL. SYNCHROPTER. NOTAR. NATAR. Bertrand :
NOTAR fan housed in the aft fuselage pushes large amount of low pressured air into the tail boom. The air is released through slits cut in the starboard/right side of the tail boom and jet thruster. The air released through the slits flows along the tail boon surface by a boundary-layer control called Coanda effect.
Under the effect of main rotor downwash, tail boom acts like a wing and and produces lift toward right when observed from aft and this becomes a part of anti-torque. During hovering anti-torque is compensated for with thrust generated by jet thruster.
062 - Radionavigation > Radio Aids A pilot has selected the appropriate ILS frequency for the approach that they are currently established on. Which of the following scenarios would cause a warning flag to appear on both the Localiser (LOC) and GIide Path (GP) indications?
Viewed at last exams A difference in depth of modulation of zero. Loss of ILS ident transmission. Absence of both carrier waves. Excessive LOC and GP deviations. Bertrand : Learning Objective 062.02.05.02.05: Describe the circumstances in which warning flags will appear for both the LOC and the GP: absence of the carrier frequency; absence of the modulation simultaneously; the percentage modulation of the navigation signal reduced to 0.
When on the approach, the sudden appearanc of both flags must mean a fault of some kind (not just being out of range), so this must be down to one of the faults listed in the learning objective above. The easiest fault to remember is correct in this case, as the sudden absence of a carrier wave is certainly going to remove LOC and GP indications and will therefore show warning flags.
The other answers are wrong because:
The difference in depth of modulation (DDM) is the way an ILS tells you where you are in relation to the localiser centreline or the glide path, and a DDM of zero means being exactly on the LOC or GP.
'Excessive LOC or GP deviations' is vague, but even when at more than full scale deflection (but within the coverage area), the indicators still show the direction we are off track/glidepath.
Loss of ident transmission would not show flags on its own, but there might be a common error which causes both flags to show and the ident to stop transmitting, such as a total power loss, etc.
010 - Air Law > Aerodromes Abbreviations.
The abbreviation PAPI stands for:
Precision Approach Power Indicator. Precision Approach Path Index. Precision Approach Power Index. Precision Approach Path Indicator. Bertrand : Precision Approach Path Indicator (PAPI) consists of four sets of lights in a line perpendicular to the runway, usually mounted to the left side of the runway. These have a similar purpose to basic visual approach slope indicators, but the additional lights serve to show the pilot how far off the glide slope the aircraft is.
When the lights show White-White-Red-Red the aircraft is on the correct glide slope for landing, usually 3.0°. Three red lights (white-red-red-red) indicate that the aircraft is slightly below glide slope (2.8°), while four red lights (Red-Red-Red-Red) indicate that the aircraft is significantly below glide slope (3.5°).
Most large airports utilize this system. Although most airports use a PAPI based on a 3.0° glide slope, some airports may use a glide slope as great as 5.0° in order to have proper obstruction clearance.

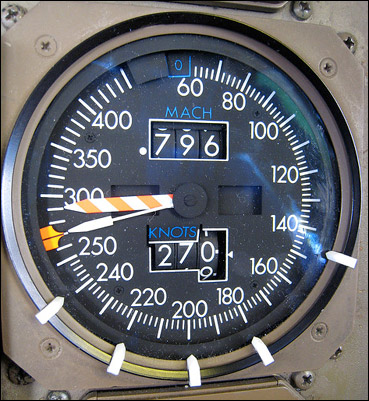

081 - Principles of Flight > High Speed Aerodynamics Just above the critical Mach number the first evidence of a shock wave will appear at the:
Trailing edge of the wing. Upper side of the wing. Leading edge of the wing. Lower side of the wing. Bertrand : The critical Mach number of an aerofoil is the free stream Mach number at which sonic speed (M=1) is first reached on the upper surface:
In this example, Mcrit = 0.72 (at leading edge).
The first evidence of a shock wave will appear at the upper side of the wing where sonic speed is reached.

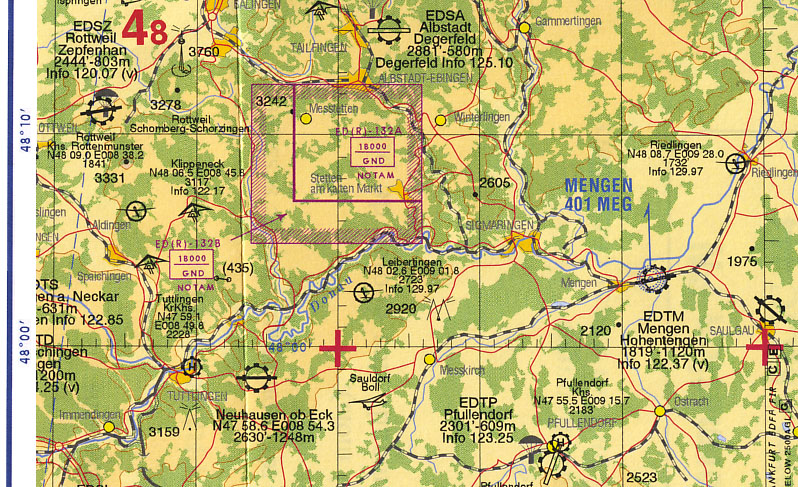

033 - Flight Planning > VFR Flights Use Route Manual VFR+GPS chart ED-6.
Flying from EDSZ ROTTWEIL ZEPFENHAN (48°12'N, 008°44'E) to EDTM MENGEN airport (48°03'N, 009°22'E).
Find magnetic course and the distance.
Magnetic course 108°, distance 27 NM Magnetic course 288°, distance 27 NM Magnetic course 288°, distance 40 NM Magnetic course 108°, distance 40 NM Bertrand :
Report the magnetic north tick from MENGEN VOR at mid distance between the two airports, center your protractor and read a magnetic course of 108°.
Longitude difference is 0.633° between MENGEN and ROTTWEIL ZEPFENHAN:
Mean latitude is 48.15° (48°09')
(0.633 x 60) x cos48.15 = 26 NM.
070 - Operational Procedures > Special and Hazards The reference document you shall use when a piece of equipment on your aeroplane fails during taxy is:
The MMEL. The PART-OPS. The Operations Manual under the heading (MEL). The Operations Manual under the heading 'Abnormal and Emergency Procedures'. Bertrand :
If an equipment becomes inoperable while parked you consult the 'MEL' and while taxying (for take-off or after landing) you must refer to the 'Abnormal and Emergency Procedures' (in the QRH - Quick Reference Handbook).
050 - Meteorology > The Atmosphere In which layer is most of the atmospheric humidity concentrated ?
Tropopause. Stratopause. Troposphere. Stratosphere. Bertrand :
032 - Performance A > CS-23 Performance Class B - use of performance data Following a take-off, limited by the 50 ft screen height, a light twin climbs on a gradient of 5%.
It will clear a 160 m obstacle in relation to the runway (horizontally), situated at 5 000 m from the 50 ft point with an obstacle clearance margin of:
It will not clear the obstacle. 75 m. 105 m. 90 m. Bertrand : A 5% climb on 5000 m means a 250 m gain in height (5% --> for 100 m horizontal distance, you gain 5 m in height) + 50 ft (15 m), it gives 265 m.
265 - 160 = 105 m.

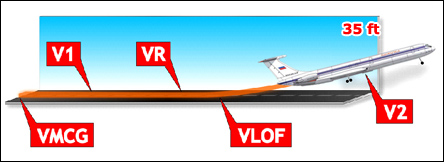

032 - Performance A > General Which is the correct sequence of speeds during take-off?
V1, VMCG, VR, V2. VMCG, V1, VR, V2. V1, VR, V2, VMCA. V1, VR, VMCG, V2. Bertrand :
V1-Critical engine failure speed or decision speed. Engine failure below this speed should result in an aborted takeoff; above this speed the takeoff run should be continued.
VR-Speed at which the rotation of the airplane is initiated to takeoff attitude. This speed cannot
be less than V1 or less than 1.05 x VMCA (minimum control speed in the air).
VMCG-The minimum control speed in the Ground.
VLOF-The speed at which the airplane first becomes airborne. This is an engineering term used when the airplane is certificated and must meet certain requirements. If it is not listed in the Airplane Flight Manual, it is within requirements and does not have to be taken into consideration by the pilot.
061 - General Navigation > VFR When turning right from 330°(C) to 040°(C) in the northern hemisphere, the reading of a direct reading magnetic compass will:
Over-indicate the turn and liquid swirl will decrease the effect. Under-indicate the turn and liquid swirl will increase the effect. Over-indicate the turn and liquid swirl will increase the effect. Under-indicate the turn and liquid swirl will decrease the effect. Northern hemisphere: “UNOS” - Underturn/Under-read through North, Overturn/Over-read through South. Bertrand :
For turning errors :
Northern hemisphere: “UNOS
” - Underturn/Under-read through North, Overturn/Over-read through South.
Southern hemisphere: “ONUS
” - Overturn/Over-read through North, Underturn/Under-read through South.
033 - Flight Planning > VFR Flights Give the frequency of STUTTGART ATIS:
Viewed at last exams 126.12 kHz. 128.95 kHz. 128.95 MHz. 126.12 MHz. Bertrand :
032 - Performance A > CS-25 Performance Class A - theory On a segment of the take-off flight path an obstacle requires a minimum gradient of climb of 2.6% in order to provide an adequate margin of safe clearance.
At a mass of 110000 kg the gradient of climb is 2.8%.
For the same power and assuming that the sine of the angle of climb varies inversely with mass, at what maximum mass will the aeroplane be able to achieve the minimum gradient?
102150 kg. 121310 kg. 106425 kg. 118455 kg. Bertrand : 2.8 / 2.6 x 110000 = 118461 kg.
As we decrease our climb gradient for the same power, our mass can be increased.
032 - Performance A > General In certain conditions V2 can be limited by VMCA:
High take-off mass, large flap extension, low field elevation. High take-off mass, small flap extension, high field elevation. Low take-off mass, small flap extension, low field elevation. Low take-off mass, large flap extension, low field elevation. Bertrand :
V2 can be limited by 1.1 VMCA or by 1.13 VSR (or 1.08 VSR for turbo-propeller powered aeroplanes with more than three engines).
At low field elevation there will be a high Vmca because of the high asymetric thrust.
V2 min based on Vmca is 1.1 Vmca.
At low Take-Off Mass and with a large flap selection, the 1.13 Vsr or 1.08Vsr will be less restrictive than the 1.1 Vmca.
(Vsr: reference stall speed).

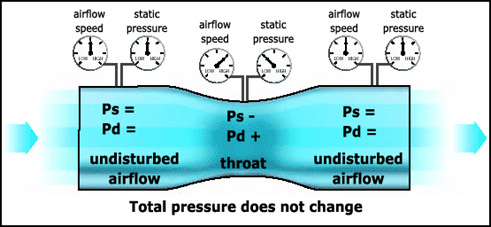

081 - Principles of Flight > Subsonic Aerodynamics The (subsonic) static pressure:
Increases in a flow in a tube when the diameter decreases. Is the total pressure plus the dynamic pressure. Decreases in a flow in a tube when the diameter decreases. Is the pressure in a point at which the velocity has become zero. Bertrand :
The static pressure decreases in a venturi (a tube where the diameter decreases), and the airflow speed increases.
032 - Performance A > General Which of the following diagrams correctly shows the movement of the power required curve with increasing altitude .(H1 < H2)
Figure a. Figure c. Figure d. Figure b. Bertrand :
TAS increases with altitude (from ERTM graph), thus the curve moves right.
Power required = drag x TAS.
If TAS increases, drag increases, power required increases, thus the curve moves up.

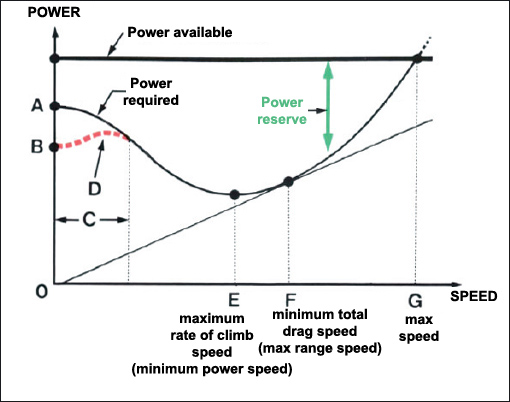

032 - Performance A > CS-23 Performance Class B - theory Maximum endurance for a piston engine aeroplane is achieved at:
The speed for minimum drag. The speed that corresponds to the speed for maximum climb angle. The speed that approximately corresponds to the maximum rate of climb speed. The speed for maximum lift coefficient. Bertrand :
Maximum endurance in a piston engine aeroplane will occur at Vmp (minimum power speed), you want to use as little fuel as possible in order to stay airborne as longer as possible, you are not concerned with distance.
The best rate of climb will occur where you have excess power available, that is Vy (best rate of climb speed) and in a piston engine aeroplane, that is definitely slower than speed for minimum drag (Vmd). Thus, maximum endurance for a piston engine aeroplane is achieved at a speed that approximates the best rate of climb speed (Vmp).
A common mistake is done between the TRHUST Required Curve (showing drags) and POWER Required Curve (showing required power):
For the propeller driven aircraft curve, the lowest point of the curve is the TAS at wich the least power is needed (as opposed to producing the least drag) and is therefore the best for endurance in level flight. It is also the maximum rate of climb speed because the gap between power required and power available is greatest (More power is needed above and below the minimum power speed).
050 - Meteorology > The Atmosphere An aircraft is descending to land under IFR. If the local QNH is 1009 hPa, what will happen to the altitude reading when the altimeter is reset at the transition level ?
It will increase. It will not be affected. It will remain the same. It will decrease. Bertrand :
At transition level, you will reset your altimeter from 1013 hPa (standard) to QNH (1009 hPa).
You have to turn altimeter setting adjustement knob in a counter-clockwise direction, to decrease the indicated pressure.
This will decrease the indicated altitude (the needle moves in the same direction of the subscale knob).
